SPECIFICATION

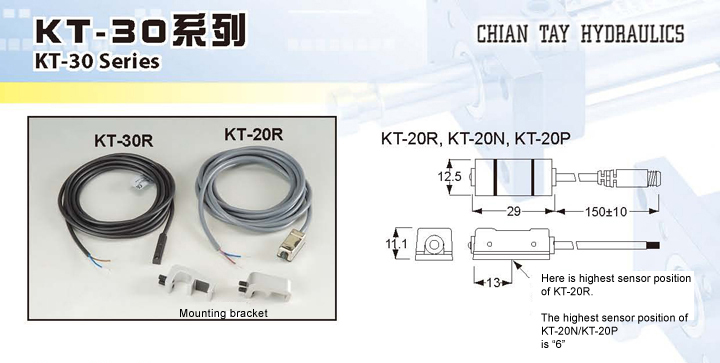

TYPE	KT-20R/KT-30R		KT-20N/KT-30N	KT-20P/KT-30P
CONNECT DIAGRAM CHARACTERISTICS
WIRING METHOD	2-Wire Type		3-Wire Type
SWITCHING LOGIC	SPST, Normally Open		Solid State Output, Normally Open
SENSOR TYPE	Reed Switch		NPN Current Sinking	PNP Current Sourcing
OPERATING VOLTAGE	5~240V DC/AC		5~30V DC
SWITCHING CURRENT	100 mA max.		150 mA max. / 200 mA max.
CONTACT RATING	10 W max.		4.5 W max. / 6 W max.
CURRENT CONSUMPTION	_		20 mA @ 24V max. (Switch Active)
VOLTAGE DROP	3.5 V max.		2.0 V@100mA max. / 0.5 V@100mA max.
LEAKAGE CURRENT	_		0.01 mA max.
INDICATOR	Green LED		Red LED	Green LED
CABLE	4 , 2C, PVC (Gray)	3.3 , 2C, PVC (Black)	4 , 3C , PVC(Black )	3.3 , 3C , PVC(Black )
MAX. SWITCHING FREQUENCY	200Hz		1000Hz
MAGNETIC REQUIREMENT	60 / 40 Gauss
TEMPERATURE RANGE	-10~70
SHOCK	30 G		50 G
VIBRATION	9 G
ENCLOSURE CLASSIFICATION	IEC 529   IP67
PROTECTION CIRCUT	None		Power Source Reverse Polarity; Surge Suppression

1. Measuring standard target : 15.5 x 8 x 5t (Anisotropy Rubber Magnet)
2. Sin Wave / X, Y, Z 3 directions / 3 times each direction / 11ms each time.
3. Double amplitude 1.5mm /10Hz~55Hz~10Hz(Sweep 1 min) / X, Y, Z 3 directions / 1 hour each time.

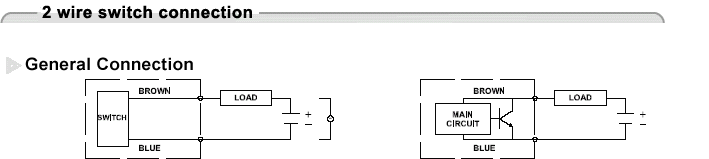

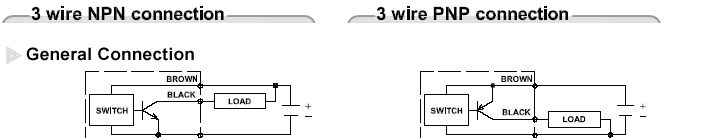

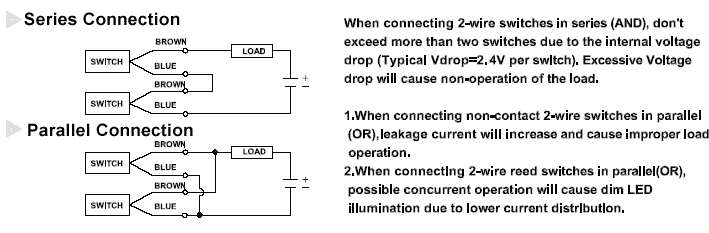

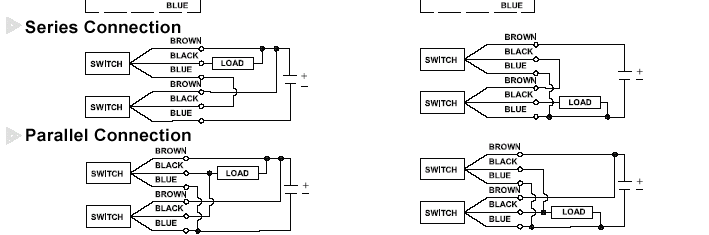

Connecting method of sensor

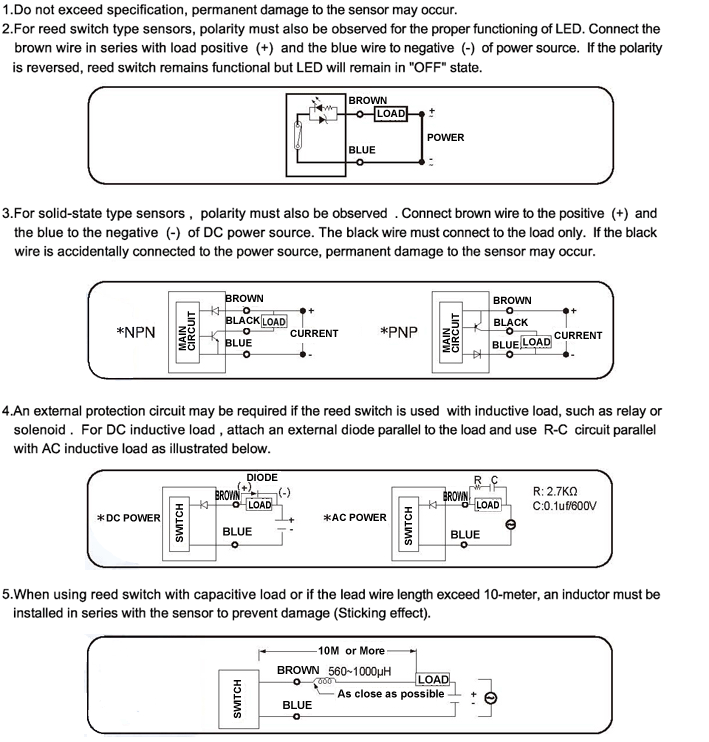

Notice for use magnetic sensor

Do not close magnetic field or metal object when sensor is operating.
