Home > Products > Hydraulic Motors for Steel Mold


Hydraulic Motors for Steel Mold Menu :

Hydraulic Motor Gear Holder
  • Hydraulic moto
  • Gear
  • Holder
Model Displacement R.P.M Torque kg-m Pressure kg/cm2 Weight
C.C/REV Cont. Int. Cont. Int. Peak Cont. Int. Peak Kg
OOM 8 8.2 1950 2450 1.1 1.5 2.1 100 140 200 1.9
OOM 12.5 12.9 1550 1940 1.6 2.3 3.3 100 140 200 2.0
OOM 20 19.9 1000 1250 2.5 3.5 5.1 100 140 200 2.1
OMP 32 31.6 630 800 4.0 5.7 6.4 100 140 160 2.2
OMP 50 48.6 1230 1540 6.5 9.3 14 100 140 225 5.6
OMP 80 77.8 770 960 11 15 22 100 140 225 5.7
OMP 100 97.3 615 770 13 19 27 100 140 225 5.9
OMP 125 125 480 600 17 24 37 100 140 225 6.0
OMP 160 155.7 385 480 22 30 43 100 140 225 6.2
OMP 200 194.6 310 385 26 36 54 100 140 225 6.4
OMP 250 242.3 250 310 28 41 55 85 125 180 6.6
OMP 315 306.1 195 245 28 39 60 70 100 160 6.9
OMP 400 389.2 155 190 28 42 60 55 80 130 7.4
OMR 50 51.6 775 970 10 13 17 140 175 225 6.7
OMR 80 80.3 750 940 16 20 27 140 175 225 6.9
OMR 100 99.8 600 750 20 24 32 140 175 225 7
OMR 125 125.7 475 600 25 30 37 140 175 225 7.2
OMR 160 159.6 375 470 32 38 46 140 175 225 7.5
OMR 200 199.8 300 375 33 35 56 120 175 225 8.0
OMR 250 249.3 240 300 36 47 71 100 140 225 8.5
OMR 315 315.7 190 240 35 51 84 80 125 210 9.1
OMS 80 80.5 810 1000 20 24 26 175 210 225 9.8
OMS 100 100 750 900 25 30 32 175 210 225 10
OMS 125 125.7 600 720 32 38 40 175 210 225 10.3
OMS 160 159.7 470 560 34 48 51 150 210 225 10.7
OMS 200 200 375 450 40 50 65 140 175 225 11.1
OMS 250 250 300 360 45 54 69 125 155 220 11.6
OMS 315 314.9 240 285 54 63 84 120 140 185 12.3


Hydraulic Motors for Steel Mold

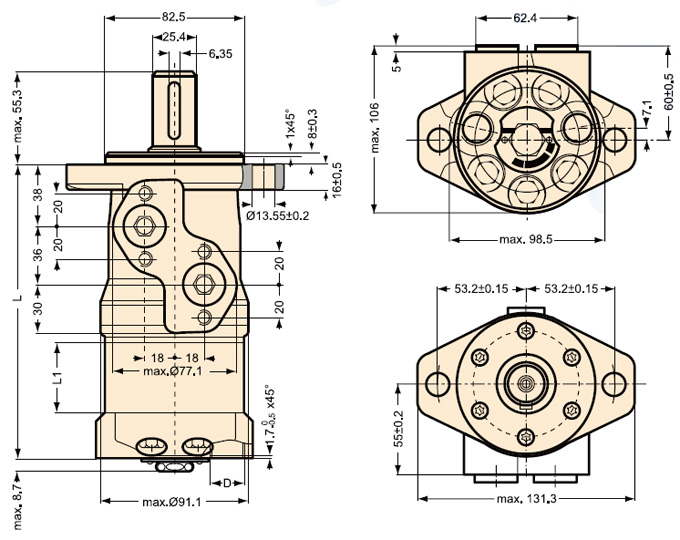

  • C: Drain connection
    G1/4: 12 mm deep
  • D: G1/2: 15 mm deep
Type L L1
OMP 50 145.1 6.5
OMP 80 149.0 10.4
OMP 100 151.7 13.0
OMP 125 155.2 16.3
OMP 160 159.4 20.8
OMP 200 164.6 26.0
OMP 250 171.1 32.5
OMP 315 179.5 40.9
OMP 400 190.6 52.0
