High Pressure Hydraulic Cylinder LA TYPE

Menu :

Prevent to regress by add Anti-Reveres Valve.

With sensor：Ø40-Ø150, customization is accepted.

Use of pressure: 140 kg/cm²(14MPa)
Sensors are available from Ø40-Ø150
Order Code ：

1	Mount Type
2	Bore Size (mm)
3	Stroke (mm)
4	Rod Type: N: Tapping, W: Thread, T: Lathe slot, T2: Mill slot
5	Sensor cord x 2 (Including sensor cord with "S2" code.)

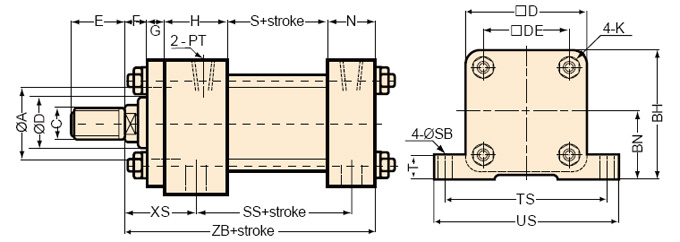

SIZE	Ø A	Ø D	C	□ D	□ DE	E	F	G	H	N	K	BN	BH	SS	Sensor SS	XS	SB	TS	US	T	ZB	S	Sensor S	PT
BORE	Ø A	Ø D	C	□ D	□ DE	E	F	G	H	N	K	BN	BH	SS	Sensor SS	XS	SB	TS	US	T	ZB	S	Sensor S	PT
Ø40	40	25	M22XP1.5	65	45	40	20	17	33	28	M10XP1.25	37	69.5	80	90	54	12	90	112	14	148	50	60	3/8
Ø50	45	30	M26XP1.5	80	56	40	20	17	38	30	M12XP1.5	45	85	89	94	56	14	115	140	17	160	55	60	3/8
Ø63	50	35	M30XP1.5	90	62	45	20	17	38	30	M14XP1.5	50	95	89	94	56	14	128	156	19	160	55	60	3/8
Ø80	55	40	M30XP1.5	110	80	45	20	20	38	35	M16XP1.5	60	115	111.5	108	59	18	152	184	25	188	75	72	1/2
Ø100	65	50	M40XP2.0	131	95	55	25	20	41	37	M18XP1.5	70	137.5	129	125	66	21	178	210	27	213	90	86	1/2
Ø125	80	60	M50XP2.0	162	122	70	35	30	57	47	M22XP1.5	90	171	152	150	93	24	230	280	30	269	100	98	3/4
Ø150	100	80	M70XP2.0	195	144	80	35	30	60	50	1-8UNC	113	211	145	162	95	28	270	325	35	265	90	107	3/4
Ø180	135	100	M90XP2.0	235	175	100	35	40	65	55	1 1/4-8UNC	143	261	180	180	108	35	330	395	45	315	120	120	1"
Ø200	135	100	M90XP2.0	262	193	120	40	40	65	60	1 1/4-8UNC	161	292	183	183	113	35	360	430	50	325	120	120	1"
	Copper Bushing

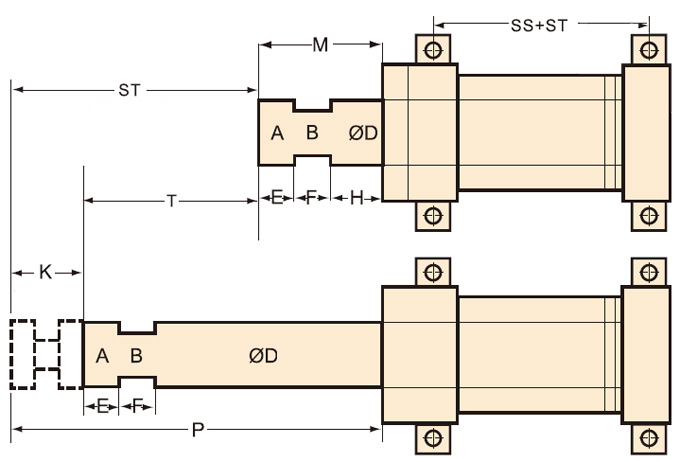

How to Order

M：Min. Length T：Actual stroke ST：Hydraulic cylinder stroke(T plus K)
P：Max. Length K：Reserved size

A	B	ØD	E	F	H	M	P	T	K	ST	SS+ST

Please fill the relative size on above form .

The stroke is recommended as the following:
* K is 5-10mm when stroke is within or no more than 50mm.
* K is 10-15mm when stroke is within or no more than 100mm.
* K is 15-20mm when stroke is more than 100mm.
