High Pressure Hydraulic Cylinder FA TYPE

Menu :

Iron Body
Use of pressure: 140 kg/cm²(14MPa)
Order Code:

1	Mount Type
2	Bore Size(mm)
3	Stroke(mm)
4	Rod Type: N: Tapping, W: Thread, T: Lathe slot, T2: Mill slot

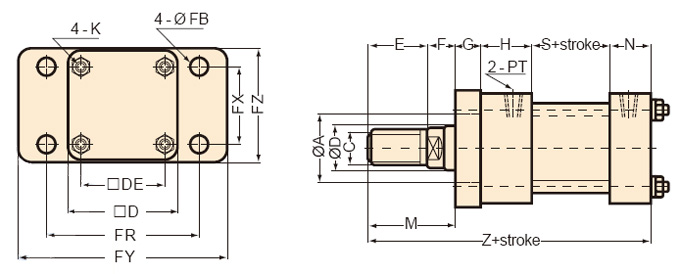

SIZE	ØA	ØD	C	□D	□DE	E	F	G	H	N	M	Ø FB	FR	FX	FY	FZ	K	S	Z	PT
BORE	ØA	ØD	C	□D	□DE	E	F	G	H	N	M	Ø FB	FR	FX	FY	FZ	K	S	Z	PT
Ø30	25	16	M14XP1.5	45	31	23	14	10	27	23	37	9	65	30	81	50	M6XP1.0	40	138	1/4
Ø40	40	25	M22XP1.5	65	45	40	20	17	33	28	60	12	93	50	115	75	M10XP1.25	50	188	3/8
Ø50	45	30	M26XP1.5	80	56	40	20	17	38	30	60	14	110	56	150	85	M12XP1.5	55	203	3/8
Ø63	50	35	M30XP1.5	90	62	45	20	17	38	30	65	14	126	68	155	95	M14XP1.5	55	205	3/8
Ø80	55	40	M30XP1.5	110	80	45	20	20	38	35	65	18	152	75	190	120	M16XP1.5	75	233	1/2
Ø100	65	50	M40XP2.0	131	95	55	25	20	41	37	80	20	180	100	220	140	M18XP1.5	90	268	1/2
Ø125	80	60	M50XP2.0	162	122	70	35	30	57	47	105	24	222	122	280	170	M22XP1.5	100	339	3/4
Ø150	100	80	M70XP2.0	195	144	80	35	30	60	50	115	28	260	155	310	206	1-8UNC	90	345	3/4
Ø180	135	100	M90XP2.0	235	175	100	35	40	65	55	135	35	315	188	375	250	1 1/4-8UNC	120	415	1"
Ø200	135	100	M90XP2.0	262	193	120	40	40	65	60	160	35	355	207	425	272	1 1/4-8UNC	120	445	1"
	Copper Bushing

How to Order

M：Min. Length T：Actual stroke ST：Hydraulic cylinder stroke(T plus K)
P：Max. Length K：Reserved size

ØD

ØFB

Please fill the relative size on above form .

The stroke is recommended as the following:
* K is 5-10mm when stroke is within or no more than 50mm.
* K is 10-15mm when stroke is within or no more than 100mm.
* K is 15-20mm when stroke is more than 100mm.
