Home > Products > Sensor High Pressure Hydraulic Cylinder FA TYPE


Sensor High Pressure Hydraulic Cylinder
   FA TYPE		 Menu :

Sensor Heavy Oil Hydraulic Cylinder
Prevent to regress by add Anti-Reveres Valve.

Sensor Heavy Oil Hydraulic Cylinder
Recommend to add 5mm Bakelite board between mold and hydraulic cylinder when the temperature of mold more than 80°C.
  • The attachment of the sensor line takes only a little space of hydraulic cylinder and is very easy for installation.
  • Use of pressure: 140 kg/cm2(14MPa)
  • The attachment of magnetic sensor piston and magnetic spring access switch can offer signal inspection functions.
  • Order Code ：
    表示方法
1 Mount Type
2 Bore Size (mm)
3 Stroke (mm)
4 Rod Type: N: Tapping, W: Thread, T: Lathe slot, T2: Mill slot
6 Sensor cord x 2
7 Including Bakelite board with "H" code.

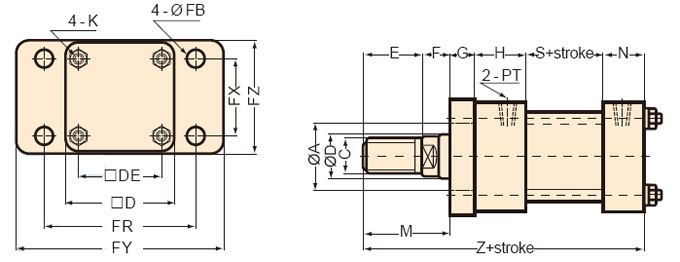

Sensor Heavy Oil Hydraulic Cylinder

SIZE ØA ØD C □D □DE E F G H N M Ø
FB		 FR FX FY FZ K S Z PT
BORE
Ø32 30 16
20		 M14XP1.5 50 34 28 15 11 27 23 43 9 80 34 105 52 M8XP1.25 50 154 1/4 CAD Download
Ø40 40 25 M22XP1.5 65 45 40 20 17 33 28 60 12 93 50 115 75 M10X91.25 60 198 3/8 CAD Download
Ø50 45 30 M26XP1.5 80 56 40 20 17 38 30 60 14 110 56 150 85 M12XP1.5 60 208 3/8 CAD Download
Ø63 50 35 M30XP1.5 90 62 45 20 17 38 30 65 14 126 68 155 95 M14XP1.5 60 210 3/8 CAD Download
Ø80 55 40 M30XP1.5 110 80 45 20 20 38 35 65 18 152 75 190 120 M16XP1.5 72 230 1/2 CAD Download
Ø100 65 50 M40XP2.0 131 95 55 25 20 41 37 80 20 180 100 220 140 M18XP1.5 86 264 1/2 CAD Download
Ø125 80 60 M50XP2.0 162 122 70 35 30 57 47 105 24 222 122 280 170 M22XP1.5 98 337 3/4 CAD Download
Ø150 100 80 M70XP2.0 195 144 80 35 30 60 50 115 28 260 155 310 206 1-8UNC 107 362 3/4 CAD Download
  Copper
Bushing



  • How to Order

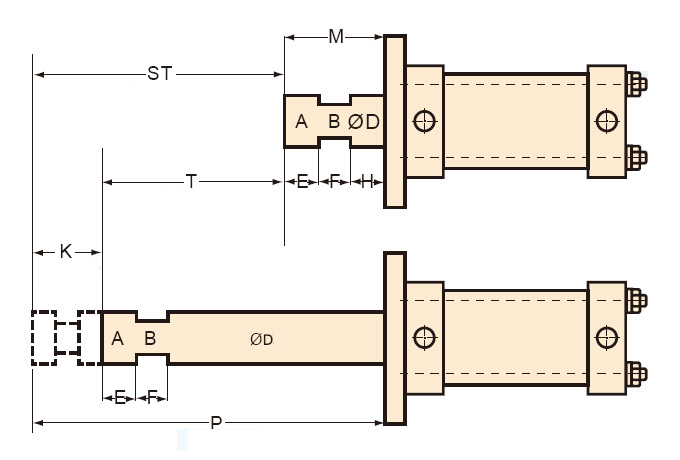

Sensor Heavy Oil Hydraulic Cylinder

Sensor Heavy Oil Hydraulic Cylinder
M：Min. Length      T：Actual stroke      ST：Hydraulic cylinder stroke(T plus K)
P： Max. Length      K：Reserved size
A B ØD E F H M P T K ST FR FX ØFB

Please fill the relative size on above form .
The stroke is recommended as the following:
* K is 5-10mm when stroke is within or no more than 50mm.
* K is 10-15mm when stroke is within or no more than 100mm.
* K is 15-20mm when stroke is more than 100mm.
Δ TOP
