Sensor Thin Hydraulic Cylinder LA TYPE

Menu :

Sensor hydraulic thin cylinder attaches with sensor pistons. This, together with magnetic spring access switch, can offer signal inspection functions.
Feature: taking little space
Use of pressure: 140 kg/cm²(14MPa)
Order Code：

1	Sensor Thin Hydraulic Cylinder, Body: SUS 304 Stainless Steel
2	Type：LA
3	Bore Size (mm)
4	Stroke (mm)
5	Rod Type: N: Tapping, W: Thread, T: Lathe slot, T2: Mill slot
6	Sensor cord x 2

Pressure	140 kg/cm²
Max. Pressure	210 kg/cm²
Min. Working Pressure	5 kg/cm²
Working Speed	8-100mm/sec
Working Temperature	-10~+60°C
Body	SUS 304 Stainless Steel

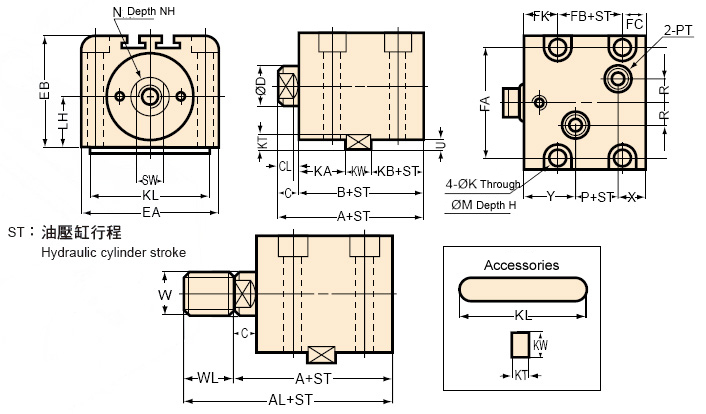

SIZE	A	AL	B	C	CL	ØD	SW	EA	EB	LH	FA	FB	FC	FK	H	ØK	M	Magnet
BORE	A	AL	B	C	CL	ØD	SW	EA	EB	LH	FA	FB	FC	FK	H	ØK	M	Magnet
Ø32	74	99	64	10	7	20	17	70	56	25	56	34	10	20	9	9	14	1pcs
Ø40	75	105	65	10	7	25	22	80	64	29	62	33	12	20	11	11	17.5	1pcs
Ø50	81	116	70	11	8	30	27	94	74	34	74	37	13	20	13	14	20	1pcs
Ø63	90	130	77	13	10	35	32	114	89	42	90	42	15	20	15	16	23	1pcs
Ø80	105	150	88	17	14	40	36	134	112	52	107	45	20	23	18	18	26	1pcs

SIZE	N (Tapping)	NH	W (Thread)	WL	KW	KT	KL	KA	KB	U	P	R	X	Y	PT
BORE	N (Tapping)	NH	W (Thread)	WL	KW	KT	KL	KA	KB	U	P	R	X	Y	PT
Ø32	M12X1.75	15	M16X1.5	25	12	8	63	28	24	4.5	24	14.5	12	28	1/8
Ø40	M16X2.0	20	M22X1.5	30	12	8	70	28	25	4.5	25	15	12	28	1/8
Ø50	M20X2.5	25	M26X1.5	35	14	9	80	29	27	5	27	17.5	13	30	1/8
Ø63	M24X3.0	30	M30X1.5	40	16	10	100	31	30	5.5	31	20.8	14	32	1/4
Ø80	M27X3.0	30	M36X1.5	45	16	10	120	38	34	5.5	35	24.3	18	35	3/8

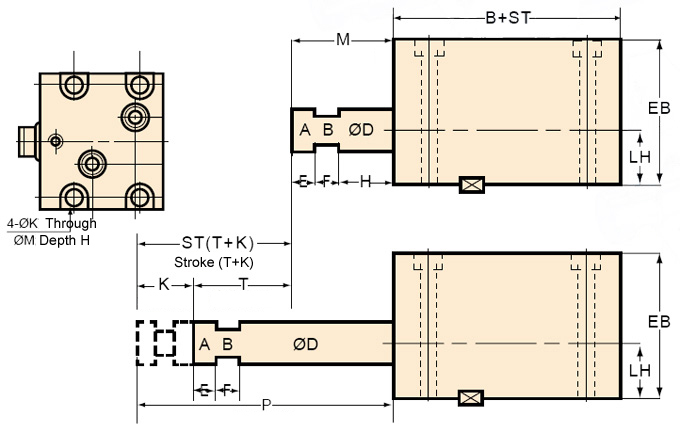

How to Order

M：Min. Length T：Actual stroke ST：Hydraulic cylinder stroke(T plus K)
P：Max. Length K：Reserved size

A	B	ØD	E	F	H	M	P	T	K	ST	B+ST

Please fill the relative size on above form .

The stroke is recommended as the following:
* K is 5-10mm when stroke is within or no more than 50mm.
* K is 10-15mm when stroke is within or no more than 100mm.
* K is 15-20mm when stroke is more than 100mm.
