Sensor Thin Hydraulic Cylinder  SW TYPE Menu :

Sensor Thin Hydraulic Cylinder SW TYPE
  • The best choice to save the space.
  • Use of pressure: 140 kg/cm2(14MPa)
  • The action of hydraulic cylinder is viewable
    when the dual rods in operation.
Sensor Thin Hydraulic Cylinder SW TYPE

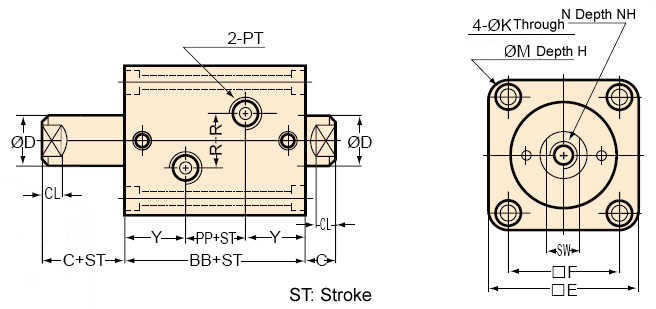

  • SW Dimension
SIZE BB C CL ØD SW □E □F H K M
BORE
Ø20 66 8 6 12 10 42 30 5.5 5.5 9.5
Ø25 68 8 6 14 12 48 36 5.5 5.5 9.5
Ø32 79 10 7 20 17 62 47 6.5 6.6 11
Ø40 80 10 7 25 22 70 52 9 9 14
Ø50 86 11 8 30 27 80 58 11 11 17.5
Ø63 95 13 10 35 32 94 69 13 14 20
Ø80 105 17 14 40 36 114 86 15 16 23
Ø100 124 17 14 50 45 134 102 18 18 26

SIZE
N
(Tapping)
 NH
W
(Thread)
 PP R X Y PT
BORE
Ø20 M8X1.25 10 M10X1.25 20 5 10 23 1/8
Ø25 M10X1.5 12 M12X1.5 22 5 10 23 1//8
Ø32 M12X1.75 15 M16X1.5 23 10 12 28 1/4
Ø40 M16X2.0 20 M22X1.5 24 10 12 28 1/4
Ø50 M20X2.5 25 M26X1.5 26 10 13 30 1/4
Ø63 M24XP3.0 30 M30XP1.5 31 10 14 32 3/8
Ø80 M27XP3.0 30 M36XP1.5 35 15 18 35 3/8
Ø100 M36XP4.0 45 M40XP2.0 46 15 18 39 1/2
