Home > Products > Thin Hydraulic Cylinder FA TYPE


Thin Hydraulic Cylinder  LA TYPE Menu :

Thin Hydraulic Cylinder LA TYPE
Oil hole in the rear, body(B+ST) must to extend 10mm.

Thin Hydraulic Cylinder LA TYPE
To inspect leak of oil by attaching the gauge to the Anti-Reveres Valve.
  • Feature: taking little space
  • Use of pressure: 140 kg/cm2(14MPa)
  • Order Code ：
    表示方法
1 Thin Hydraulic Cylinder
2 Type：LA
3 Bore Size (mm)
4 Stroke (mm)
5 Rod Type: N: Tapping, W: Thread, T: Lathe slot, T2: Mill slot

Pressure 140 kg/cm2
Max. Pressure 210 kg/cm2
Min. Working Pressure 5 kg/cm2
Working Speed 8-100mm/sec
Working Temperature -10~+60°C
Body S45C

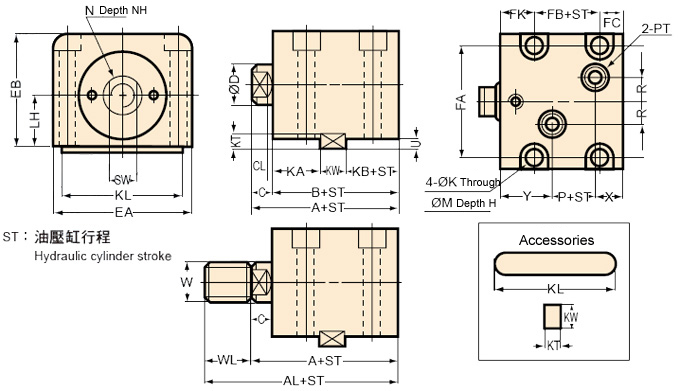

Thin Hydraulic CylinderLA TYPE

SIZE A AL B C CL ØD SW EA EB LH FA FB FC FK H ØK M
BORE
Ø32 64 89 54 10 7 20 17 70 56 25 56 24 10 20 9 9 14
Ø40 65 95 55 10 7 25 22 80 64 29 62 23 12 20 11 11 17.5
Ø50 71 106 60 11 8 30 27 94 74 34 74 27 13 20 13 14 20
Ø63 80 120 67 13 10 35 32 114 89 42 90 32 15 20 15 16 23
Ø80 95 140 78 17 14 40 36 134 112 52 107 35 20 23 18 18 26
Ø100 110 165 93 17 14 50 45 160 132 62 128 40 25 28 18 18 26

SIZE
N
(Tapping)
 NH
W
(Thread)
 WL KW KT KL KA KB U P R X Y PT
BORE
Ø32 M12X1.75 15 M16X1.5 25 12 8 63 28 14 4.5 14 10 12 28 1/4 CAD Download
Ø40 M16X2.0 20 M22X1.5 30 12 8 70 28 15 4.5 15 10 12 28 1/4 CAD Download
Ø50 M20X2.5 25 M26X1.5 35 14 9 80 29 17 5 17 10 13 30 1/4 CAD Download
Ø63 M24X3.0 30 M30X1.5 40 16 10 100 31 20 5.5 21 10 14 32 3/8 CAD Download
Ø80 M27X3.0 30 M36X1.5 45 16 10 120 38 24 5.5 25 15 18 35 3/8 CAD Download
Ø100 M36XP4.0 45 M40XP2.0 55 16 10 120 40 37 5.5 36 15 18 39 3/8 CAD Download

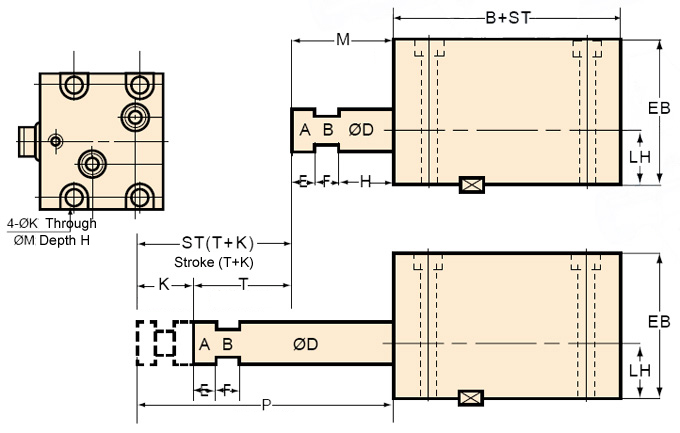

  • How to Order
Thin Hydraulic CylinderLA TYPE
M：Min. Length    T：Actual stroke      ST：Hydraulic cylinder stroke(T plus K)
P：Max. Length     K：Reserved size
A B ØD E F H M P T K ST B+ST

Please fill the relative size on above form .
The stroke is recommended as the following:
* K is 5-10mm when stroke is within or no more than 50mm.
* K is 10-15mm when stroke is within or no more than 100mm.
* K is 15-20mm when stroke is more than 100mm.
