Thin Hydraulic Cylinder SD TYPE

Menu :

Thin Hydraulic Cylinder

Thin Hydraulic Cylinder

To inspect leak of oil by attaching the gauge to the Anti-Reveres Valve.

Feature: taking little space
Use of pressure: 140 kg/cm²(14MPa)
Order Code ：

1	Thin Hydraulic Cylinder
2	Type：SD
3	Bore Size (mm)
4	Stroke (mm)
5	Rod Type: N: Tapping, W: Thread, T: Lathe slot, T2: Mill slot
6	Including Bakelite board with "H" code.

Pressure	140 kg/cm²
Max. Pressure	210 kg/cm²
Min. Working Pressure	5 kg/cm²
Working Speed	8-100mm/sec
Working Temperature	-10~+60°C
Body	S45C

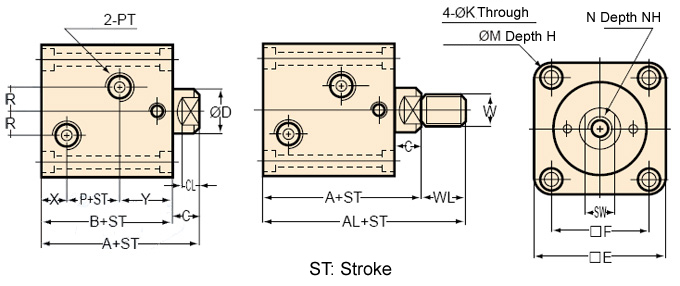

Thin Hydraulic Cylinder

SIZE	A	AL	B	C	CL	ØD	SW	□E	□F	H	K	M	N (Tapping)	NH	W (Thread)	WL	P	R	X	Y	PT
BORE	A	AL	B	C	CL	ØD	SW	□E	□F	H	K	M	N (Tapping)	NH	W (Thread)	WL	P	R	X	Y	PT
Ø20	51	69	43	8	6	12	10	42	30	5.5	5.5	9.5	M8X1.25	10	M10X1.25	18	10	5	10	23	1/8
Ø25	53	73	45	8	6	14	12	48	36	5.5	5.5	9.5	M10X1.5	12	M12X1.5	20	12	5	10	23	1/8
Ø32	64	89	54	10	7	20	17	62	47	6.5	6.6	11	M12X1.75	15	M16X1.5	25	14	10	12	28	1/4
Ø40	65	95	55	10	7	25	22	70	52	9	9	14	M16X2	20	M22X1.5	30	15	10	12	28	1/4
Ø50	71	106	60	11	8	30	27	80	58	11	11	17.5	M20X2.5	25	M26X1.5	35	17	10	13	30	1/4
Ø63	80	120	67	13	10	35	32	94	69	13	14	20	M24X3.0	30	M30X1.5	40	21	10	14	32	3/8
Ø80	95	140	78	17	14	40	36	114	86	15	16	23	M27X3.0	30	M36X1.5	45	25	15	18	35	3/8
Ø100	110	165	93	17	14	50	45	134	102	18	18	26	M36XP4.0	45	M40XP2.0	55	36	15	18	39	3/8
Ø125	145	205	125	20	16	60	54	160	122	22	22	32	M42XP4.5	50	M50XP2.0	60	52	18	23	50	1/2

How to Order

Thin Hydraulic Cylinder

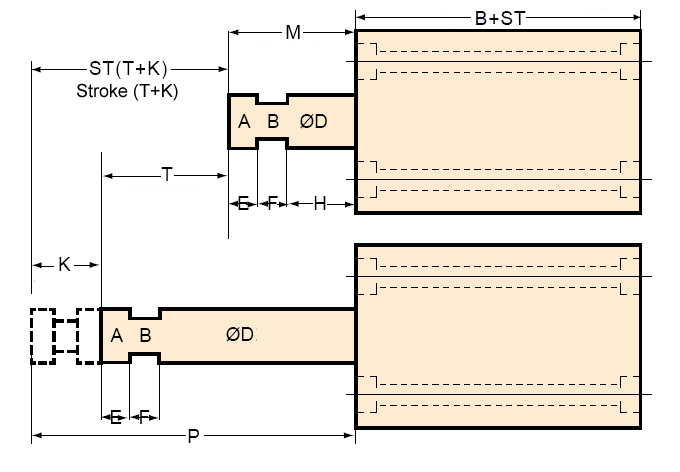

M：Min. Length T：Actual stroke ST：Hydraulic cylinder stroke(T plus K)
P：Max. Length K：Reserved size

A	B	ØD	E	F	H	M	P	T	K	ST	B+ST
