Sensor Thin Hydraulic Cylinder SD TYPE

Menu :

Recommend to add 5mm Bakelite board between mold and hydraulic cylinder when the temperature of mold more than 80°C.

Pressure	140 kg/cm²
Max. Pressure	210 kg/cm²
Min. Working Pressure	5 kg/cm²
Working Speed	8-100mm/sec
Working Temperature	-10~+60°C
Body	SUS 304 Stainless Steel

The selection of sensor hydraulic cylinder ensures precise injection movement and protects the mold at the same time.
Feature: taking little space
Use of pressure: 140 kg/cm²(14MPa)
Order Code：

1	Sensor Thin Hydraulic Cylinder, Body: SUS 304
2	Type：SD
3	Bore Size (mm)
4	Stroke (mm)
5	Rod Type: N: Tapping, W: Thread, T: Lathe slot, T2: Mill slot
6	Sensor cord x 2
7	Including Bakelite board with "H" code.

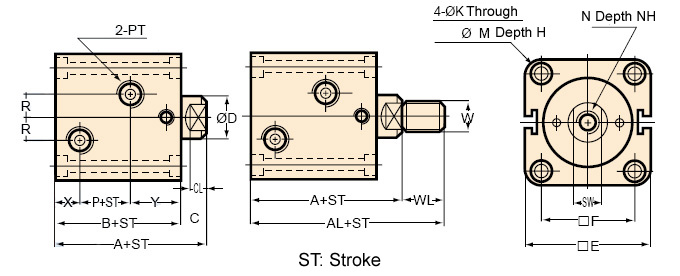

SD Dimension

SIZE	A	AL	B	C	CL	ØD	SW	□E	□F	H	K	M	N (Tapping)	NH	W (Thread)	WL	P	R	X	Y	PT	Magnet
BORE	A	AL	B	C	CL	ØD	SW	□E	□F	H	K	M	N (Tapping)	NH	W (Thread)	WL	P	R	X	Y	PT	Magnet
Ø20	66	84	58	8	6	12	10	42	30	5.5	5.5	9.5	M8X1.25	10	M10X1.25	18	25	5	10	23	1/8	2pcs
Ø25	68	88	60	8	6	14	12	48	36	5.5	5.5	9.5	M10X1.5	12	M12X1.5	20	27	5	10	23	1/8	2pcs
Ø32	74	99	64	10	7	20	17	62	47	6.5	6.6	11	M12X1.75	15	M16X1.5	25	24	10	12	28	1/4	1pcs
Ø40	75	105	65	10	7	25	22	70	52	9	9	14	M16X2.0	20	M22X1.5	30	25	10	12	28	1/4	1pcs
Ø50	81	116	70	11	8	30	27	80	58	11	11	17.5	M20X2.5	25	M26X1.5	35	27	10	13	30	1/4	1pcs
Ø63	90	130	77	13	10	35	32	94	69	13	14	20	M24X3.0	30	M30X1.5	40	31	10	14	32	1/4	1pcs
Ø80	105	150	88	17	14	40	36	114	86	15	16	23	M27X3.0	30	M36X1.5	45	35	15	18	35	3/8	1pcs
Ø100	120	175	103	17	14	50	45	134	102	18	18	26	M36XP4.0	45	M40XP2.0	55	46	15	18	39	3/8	1pcs

How to Order
Sensor hydraulic thin cylinder attaches with sensor pistons. This, together with magnetic spring access switch, can offer signal inspection functions.

M：Min. Length T：Actual stroke ST：Hydraulic cylinder stroke(T plus K)
P：Max. Length K：Reserved size

A	B	ØD	E	F	H	M	P	T	K	ST	B+ST

Please fill the relative size on above form.

The stroke is recommended as the following:
* K is 5-10mm when stroke is within or no more than 50mm.
* K is 10-15mm when stroke is within or no more than 100mm.
* K is 15-20mm when stroke is more than 100mm.
